| Lugar de origem: | CHINA |
|---|---|
| Marca: | XK |
| Certificação: | ISO, TYPE TEST REPORT |
| Número do modelo: | 27KV DOFC |
| Quantidade de ordem mínima: | 300 - 999 partes |
| Preço: | Negotiation |
| Detalhes da embalagem: | EXPORTANDO O PACOTE |
| Habilidade da fonte: | 100 partes/partes pelo mês |
| Palavras-chaves: | 27kv fazem o fusível | Padrão: | IEC GB |
|---|---|---|---|
| Tensão avaliado: | 27kv | Vida mecânica: | 10000 |
| Corrente avaliado: | 100A/200A | Porto: | NINGBO |
| Realçar: | 27kv 100a Cut Out Fuse,Porcelain 100a Cut Out Fuse,IEC GB Drop Out Fuse |
||

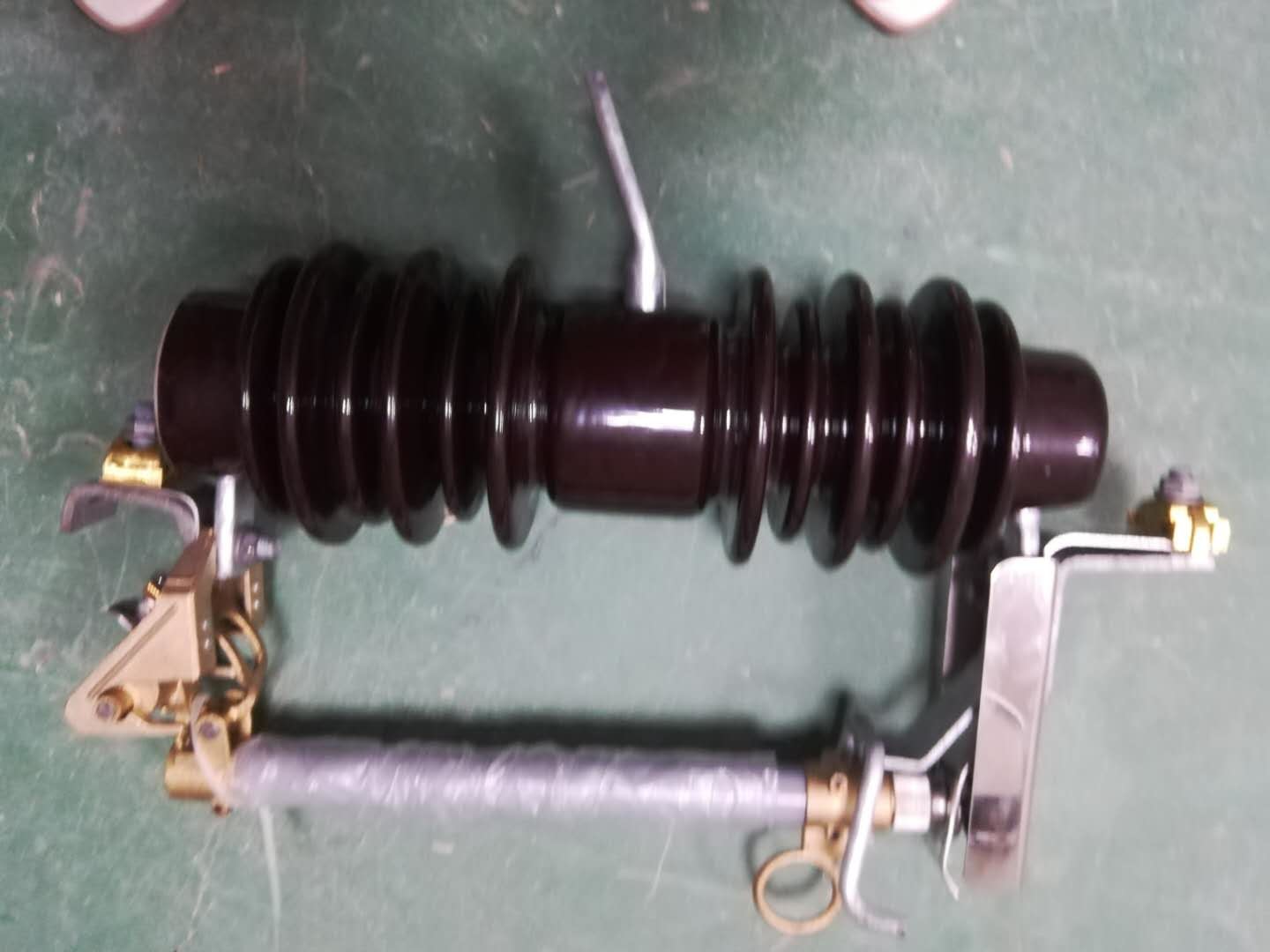

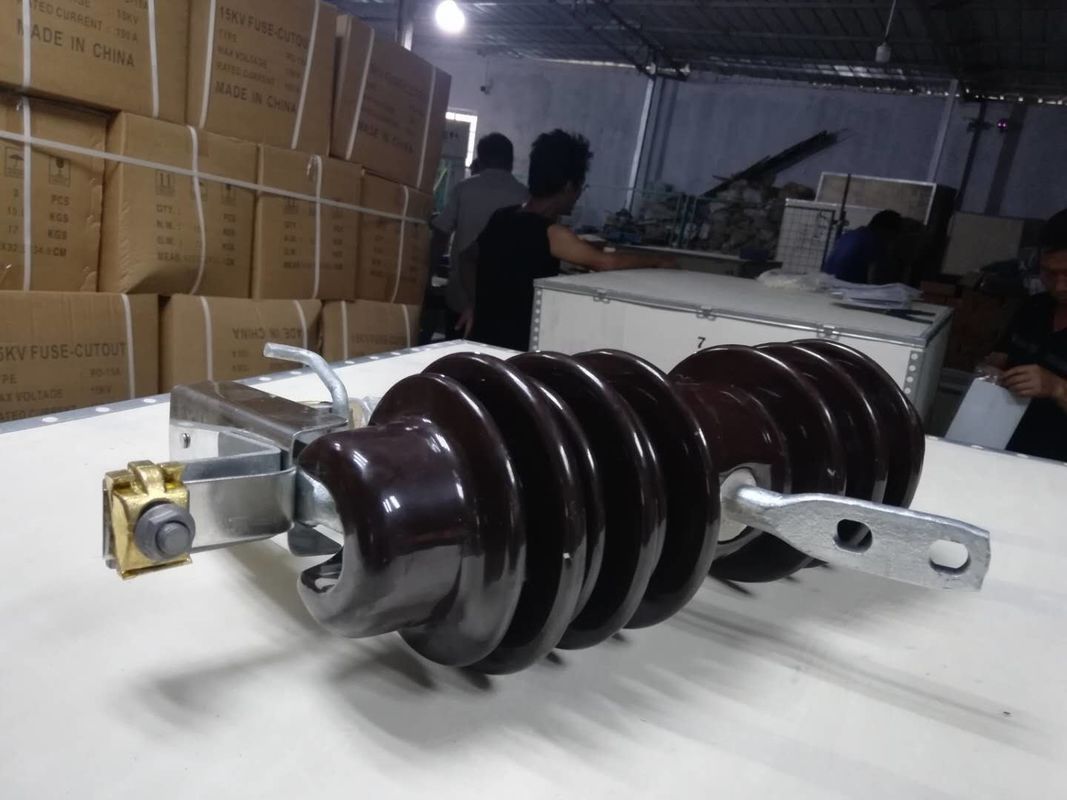

27kv drop out fuse cutout high voltage fuse
Drop out fuses for protection in distribution & transmission line are manufactured by us.
Drop out fuse cutout and load witching fuse cutout are outdoor high voltage protective device, to be conntected with incoming feeder of distrubution, transformer or distribution lines. It mainly protect transformer or lines from short circuit and overload and on/off loading current.
The main characteristics of Drop-out fuses are as under:
Available ratings : 11,12, 15,17,18,20,24,27,33 & 36kV.
Current rating : 100A,200A.
Vertical mounting type
Confirms IS: IEC
After removing the fuse barrel by an operating pole, fuse wire can be replaced.
| Type | PD 27-100A | PD 27-200A |
| Rated Voltage(kV) | 27 | 27 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 150 | 150 |
| Power frequency wihstand voltage(kV) | 65 | 65 |
| Creepage distance | 540 | 540 |
| Packing Dimensions(CM) | 45*39*15 | 45*39*15 |
fuse cutout high voltage fuse for microwave oven microwave high voltage fus
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
